FURNITURE AND OFFICE CHAIR CASTERS

These casters are also used for store fixtures, ottomans, service carts, dining room chairs, stereo equipment.

There is a wide variety of finishes and stems. Please specify. If you need help, please call and we will help you decide on your exact needs.

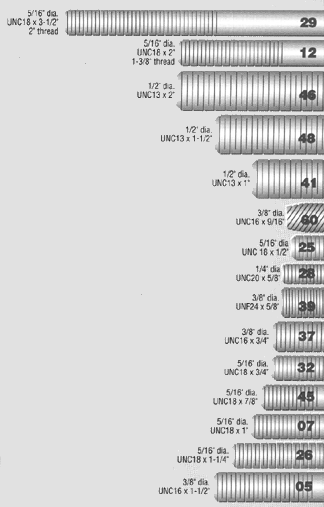

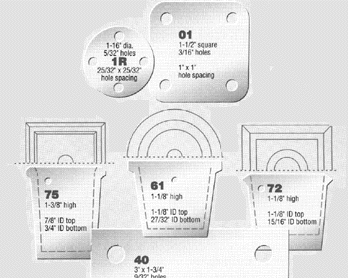

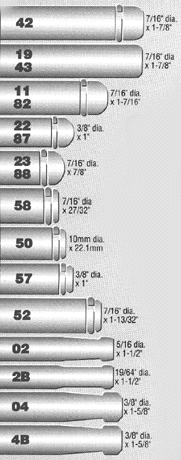

Text Box: The furniture and the office casters use only the following stems:
01, 02, 04, 05, 07, 12, 13, 19, 25, 26, 28, 37, 39, 82, 87, 88
Text Box: Other stems are available. Please call for details.


Please add to part number color code and stem code. See below.

SERIES PPA: HOODED TWIN WHEEL CASTERS
Nylon wheel for all floors. Polyurethane wheels for hardwood or ceramic tiles.
All wheel materials are guaranteed non-marking.

Wheel Dia. Wheel
Material
Hood
Material
Load
Cap.
Overall
Height
+/- 1/8
Part Number Price
Includes stem
2
Or 50mm
NylonMetal75 lbs.2 1/2 "PPA50 ** FB $4.97
NylonPPE52 ** BK$3.86
PolyurethaneMetalPPA50 ** FB-POLY $7.53
2 3/8
Or 60mm
NylonMetal100 lbs.2 3/4"PPA60 ** FB $6.97
PolyurethanePPA60 ** FB-POLY $10.10

OPTION: BRAKE IS AVAILABLE ON 2 NYLON MODEL ONLY. PLEASE ADD $ 2.50 TO CASTER PRICE.
NOTE: PRICE LISTED IS FOR THE BLACK FINISH. SEE BELOW FOR OPTIONS ON COLORS.

PLEASE ADD THE DIFFERENCE TO THE CASTER PRICE FOR THE FOLLOWING COLOR FINISHES. PLUS ADD THE COLOR CODE TO PART NUMBER. EXAMPLE: REMOVE "FB" AND REPLACE WITH "BC" FOR BRIGHT CHROME.
Other finishes available. Please call...
2" 2 3/8"
FLAT BLACK    "FB":  N/CN/C
BRIGHT CHROME    "BC":$ 1.23 $  1.53
BRIGHT BRASS   "BB":$ 1.27$ 1.57
WINDSOR ANTIQUE   "WA":$ 0.57$ 1.27

  PPA60**FB on the LEFT. PPA50**FB on the RIGHT.




    FLAT BLACK "FB"             BRIGHT BRASS "BR"       WINDSOR ANTIQUE "WA"        BRIGHT CHROME "BC"

To change color of finish, replace FB (which stands for Flat Black with the appropriate color finish. Example: Casters listed have "FB" which stands for Flat Black finish. To change finish to Bright Chrome, replace "FB" to "BC."
For stem attachments, replace ** with appropriate stem number. Example: From part number "PPA50**FB, change to "PPA5001FB for a caster with a "01" plate mount.

 Add Items to Shopping Cart

 (* hint: copy and paste the Item Number and Price from the table above. Do not put a "$" in the price box.)

Quantity: Item Number: Price: Add Item to Shopping Cart

SERIES PSE & PPL: BALL CASTERS
Metal ball for carpet and rubber tread for hard floors.

Ball Dia. Wheel
Style
Load
Cap.
Overall
Height
+/- 1/8
Part Number Price
Includes stem
1-1/2
Or 38mm
Metal Ball40 lbs. 1-3/4PST15 ** BB$2.85
2
Or 50mm
Metal Ball75 lbs. 2 1/8PSE20 ** BB$3.75
2-1/4
Or 55mm
Metal Ball With
Rubber Tread
75 lbs. 2 5/8PNA22 ** BB $5.00
2-1/2
Or 63mm
Metal Ball100 lbs. 3PPL25 ** BB$6.40
3
Or 75mm
Metal Ball With
Rubber Tread
100 lbs. 3 1/2PSN30 ** BB$8.70

OPTIONS: BRAKE AVAILABLE ON 2-1/2 AND 3 MODELS. Please Add $4.20 to caster price.
PRICE LISTED IS FOR BRASS FINISH.

PLEASE ADD THE DIFFERENCE TO THE CASTER PRICE FOR THE FOLLOWING COLOR FINISHES. PLUS ADD THE COLOR CODE TO PART NUMBER. EXAMPLE: REMOVE "BB" AND REPLACE WITH "BC" FOR BRIGHT CHROME.
Other finishes available. Please call...
BRASS  "BB":NO CHARGE
BRIGHT CHROME  "BC":$ 1.80
SATIN CHROME  "SC":$ 1.80
ANTIQUE COPPER  "AC":NO CHARGE
WINDSOR ANTIQUE  "WA":$ 0.57

PPL2500BB (BRASS)                  PPL2500AC (COPPER)            PPL2500BC (CHROME)

PSE CASTERS AND PPL CASTERS LOOK THE SAME. PSE CASTERS ARE 2" IN DIAMETER AND PPL CASTERS ARE 2-1/2" IN DIAMETER.

PSN3000BC (CHROME)            PSN3000SC (SATIN)                      PSN3000WA (ANTIQUE)

TP1650-61-AB (ANTIQUE) THIS IS A HOODED BALL CASTER WITH AN 02 STYLE WOOD STEM.

Add Items to Shopping Cart
(* hint: copy and paste the Item Number and Price from the table above. Do not put a "$" in the price box.)

Quantity: Item Number: Price: Add Item to Shopping Cart
